Title: Parallel Lines & Transversals |
Grade: 10-a Lesson: S1-L5 |
Explanation: |
Quiz: at Home
Problem Id | Question |
---|---|
1 |

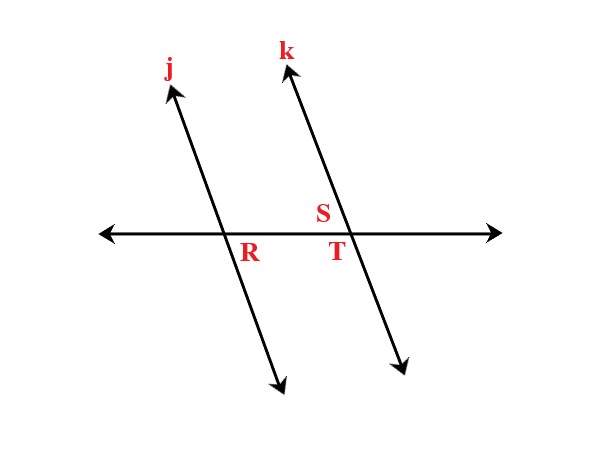

In the below diagram ,lines j and k are parallel, \$m\angle R = 78°\$, \$m\angle S = (4x+18°)\$, and \$m\angle T = (9y-6)°\$.What is the value of x and y. A) x = 15 and y = 12 B) x = 14 and y = 11 C) x = 16 and y = 10 D) x = 12 and y = 9 |
2 |

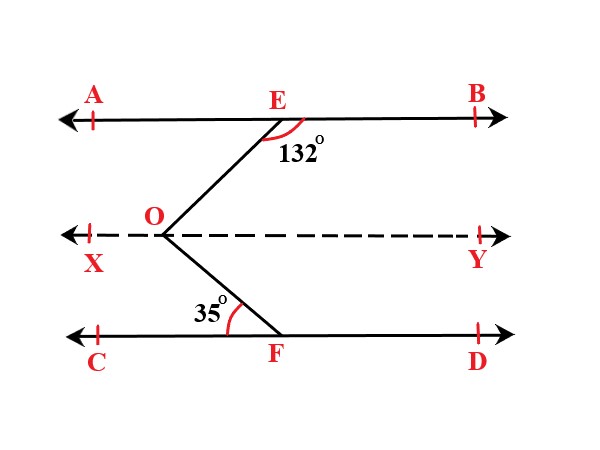

In the given figure AB ∥ CD , \$\angle BEO = 132°\$, \$\angleCFO = 35°\$.Find the measure of \$\angle EOF\$. A) 81° B) 83° C) 85° D) 80° |
3 |

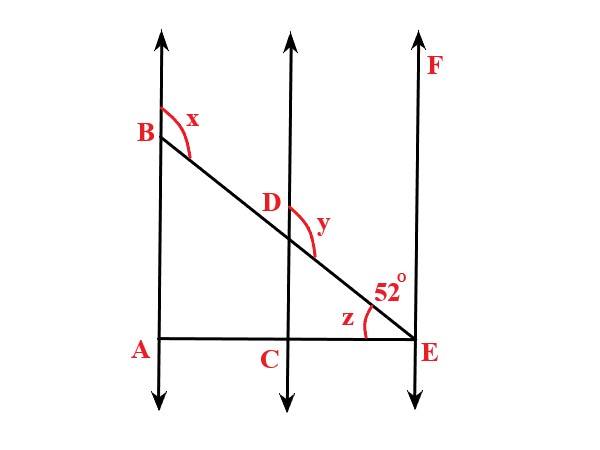

In the given figure AB ∥ CD EF ∥ and AE ⊥ AB. Also , \$\angle BAE = 90°\$. Find the values of \$\angle x, \angley , \angle z\$. A) 128° ,128° and 40° B) 126° ,126° and 38° C) 128° , 128° and 38° D) 126°,126° and 40° |
4 |

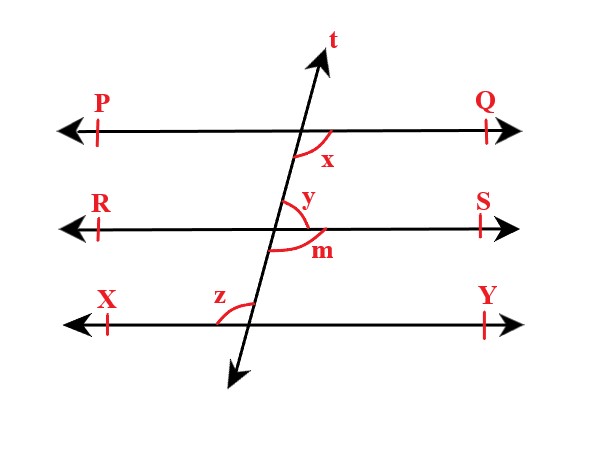

In the given figure PQ ∥ XY.Also , y : z = 6 : 6 find. A) 90° , 88° and 88° B) 88° , 88° and 94° C) 89° , 89° and 92° D) 90° ,90° and 90° |
5 |
Parallel lines are cut by a transversal such that the alternate interior angles have measures of 15n-26 and 7n+30 degrees. How do you find the value of n. A) 8° B) 7° C) 10° D) 9° |
