Title: Parallel Lines & Transversals |
Grade: 10-a Lesson: S1-L5 |
Explanation: |
Quiz: in Class
Problem Id | Question |
---|---|
1 |
If a and b are pair of interior angles on the same side of transversal and a is equal to b, then what are the angles. A) 90° B) 180° C) 45° D) 270° |
2 |

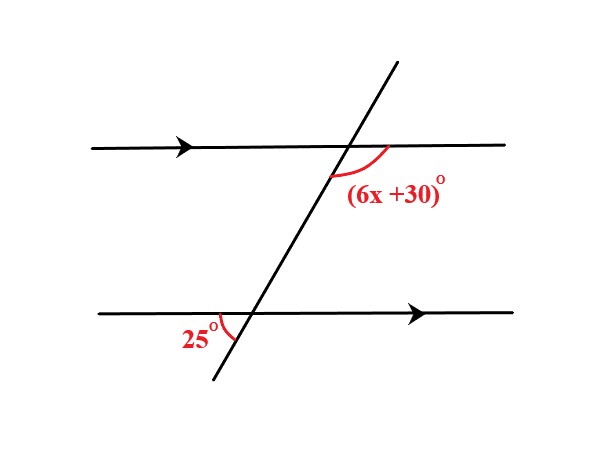

Given that the sum of angles on a straight line is equal to 180°, calculate the value of x. Hence or otherwise, calculate the size of angle 6x+30. A) 148° B) 150° C) 151° D) 153° |
3 |
Parallel lines are cut by a transversal such that the alternate interior angles have measures of 16x-16 and 4x+32 degrees. How do you find the value of x. A) 7° B) 8° C) 4° D) 6° |
4 |

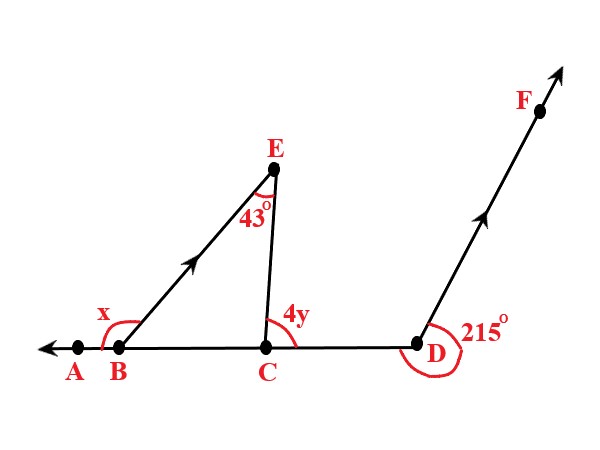

In the figure ABCD is a straight line and BE ∥ DF. Calculate the value of x and y. A) x = 147.3 and y = 19.8 B) x = 145.6 and y = 19.1 C) x = 147 and y = 19.3 D) x = 145 and y = 19.5 |
5 |

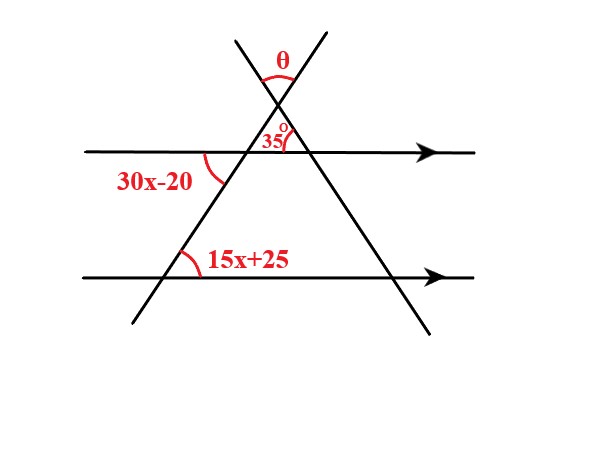

By calculating the value of x, find the value of θ. A) 75° B) 73° C) 71° D) 76° |
