Title: Box Plots & Outlier Identification

Grade Lesson s4-l6

Explanation: Hello Students, time to practice and review. Let us take next 10-15 minutes to solve the ten problems using the Quiz Sheet. Then submit the quiz to get the score. This is a good exercise to check your understanding of the concepts.

Quiz: at Home

Id	Name	Note
1	Determine the outliers in this set of marathon finish times (in minutes): 130, 135, 137, 140, 142, 145, 148, 150, 152, 153, 155, 157, 160, 162, 165, 170, 175, 180, and 300.	A) Outlier: 300 B) Outlier: 130 C) Outlier: 180 D) Outlier: 135
2	Make a box-and-whisker plot that represents the data. Describe the distribution. Exam scores: 79, 86, 100, 82, 94, 98, 96, 86, 90, 92, 62, and 84.	A) Symmetric B) None of the below C) Skewed Right D) Skewed Left
3	The heights (in centimeters) of a group of people are as follows: 148, 150, 152, 155, 157, 160, 162, 165, 168, 170, 173, 175, 178, 180, 183, 185, 188, 190, 193, 195, 198, 200, 203, 205, and 210. Determine the interquartile range (IQR).	A) 29.8 B) 30.5 C) 28.6 D) 31.3
4	The test scores of 25 students in a class are as follows: 15, 28, 40, 72, 34, 55, 76, 27, 88, 99, 80, 21, 12, 93, 44, 35, 86, 77, 28, 89, 10, 31, 92, 84, and 96. Construct a box and whisker plot for the given data set.	A) $4.1$ B) $4.2$ C) $4.3$ D) $4.4$
5	The daily production output (in units) of a manufacturing plant over 30 days is: 200, 210, 215, 220, 225, 230, 235, 240, 245, 250, 255, 260, 265, 270, 275, 280, 285, 290, 295, 300, 305, 310, 315, 320, 325, 330, 335, 340, 345, 350, and 450. Use the 1.5 \$\times\$ IQR rule to identify any outliers in the dataset.	A) Outliers = 200 B) Outliers = 350 C) Outliers = 210 D) Outliers = 450
6	The monthly internet usage (in GB) of 35 households in a neighborhood is as follows: 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, and 215 Draw a box and whisker plot representing the internet usage distribution.	A) $6.1$ B) $6.2$ C) $6.3$ D) $6.4$
7	Data Set 2: 102, 105, 108, 110, 115, 120, 122, 125, 128, 130, 135, 140, 142, 145, 150, 155, 160, 162, 165, 170, and 200 Calculate the first quartile (Q1), third quartile (Q3), and interquartile range (IQR) for the data set.	A) First Quartile (Q1): 117.5 Third Quartile (Q3): 157.5 Interquartile Range (IQR): 40 B) First Quartile (Q1): 116.1 Third Quartile (Q3): 152.6 Interquartile Range (IQR): 44 C) First Quartile (Q1): 115 Third Quartile (Q3): 158.6 Interquartile Range (IQR): 30 D) First Quartile (Q1): 117.5 Third Quartile (Q3): 150.7 Interquartile Range (IQR): 30
8	The heights (in cm) of a group of students are as follows: 1160, 1262, 2365, 1568, 1270, 1472, 1775, 1278, 1480, 1220, 2185, 1087, 2590, 1392, 2695, 1498, 2200, 3203, 2205, 1008, 2410, 1312, 3215, 2618, and 3250. Construct a box and whisker plot for the given data set.	A) $8.1$ B) $8.2$ C) $8.3$ D) $8.4$
9	A researcher records the weights (in kg) of a sample of 20 cats. Weights: 22.5, 33.1, 43.2, 33.5, 53.6, 73.8, 24.0, 14.1, 54.2, 44.5, 84.7, 35.0, 65.2, 35.5, 125.8, 16.0, 66.2, 56.5, 137.0, and 150.0 Identify any outliers in the data set.	A) outliers = 14.1 B) outliers = 137.0 C) outliers = 150.0 D) outliers = 22.5
10	Data Set 2: 102, 105, 108, 110, 115, 120, 122, 125, 128, 130, 135, 140, 142, 145, 150, 155, 160, 162, 165, 170, and 200. Calculate the first quartile (Q1), third quartile (Q3), and interquartile range (IQR) for the data set. Determine the lower and upper bounds for identifying outliers using the 1.5 \$\times\$ IQR rule.	A) Lower Bound: 617.5 Upper Bound: 2257.5 B) Lower Bound: 697.5 Upper Bound: 2157.7 C) Lower Bound: 637.1 Upper Bound: 2057.9 D) Lower Bound: 687.5 Upper Bound: 2277.3

Name

Note

Determine the outliers in this set of marathon finish times (in minutes): 130, 135, 137, 140, 142, 145, 148, 150, 152, 153, 155, 157, 160, 162, 165, 170, 175, 180, and 300.

A) Outlier: 300

B) Outlier: 130

C) Outlier: 180

D) Outlier: 135

Make a box-and-whisker plot that represents the data. Describe the distribution. Exam scores: 79, 86, 100, 82, 94, 98, 96, 86, 90, 92, 62, and 84.

A) Symmetric

B) None of the below

C) Skewed Right

D) Skewed Left

The heights (in centimeters) of a group of people are as follows: 148, 150, 152, 155, 157, 160, 162, 165, 168, 170, 173, 175, 178, 180, 183, 185, 188, 190, 193, 195, 198, 200, 203, 205, and 210.

Determine the interquartile range (IQR).

A) 29.8

B) 30.5

C) 28.6

D) 31.3

The test scores of 25 students in a class are as follows: 15, 28, 40, 72, 34, 55, 76, 27, 88, 99, 80, 21, 12, 93, 44, 35, 86, 77, 28, 89, 10, 31, 92, 84, and 96.

Construct a box and whisker plot for the given data set.

A) $4.1$

B) $4.2$

C) $4.3$

D) $4.4$

The daily production output (in units) of a manufacturing plant over 30 days is: 200, 210, 215, 220, 225, 230, 235, 240, 245, 250, 255, 260, 265, 270, 275, 280, 285, 290, 295, 300, 305, 310, 315, 320, 325, 330, 335, 340, 345, 350, and 450.

Use the 1.5 \$\times\$ IQR rule to identify any outliers in the dataset.

A) Outliers = 200

B) Outliers = 350

C) Outliers = 210

D) Outliers = 450

The monthly internet usage (in GB) of 35 households in a neighborhood is as follows: 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, and 215

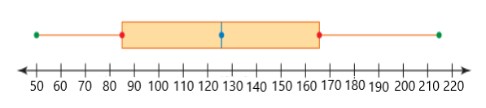

Draw a box and whisker plot representing the internet usage distribution.

A) $6.1$

B) $6.2$

C) $6.3$

D) $6.4$

Data Set 2: 102, 105, 108, 110, 115, 120, 122, 125, 128, 130, 135, 140, 142, 145, 150, 155, 160, 162, 165, 170, and 200

Calculate the first quartile (Q1), third quartile (Q3), and interquartile range (IQR) for the data set.

A) First Quartile (Q1): 117.5 Third Quartile (Q3): 157.5 Interquartile Range (IQR): 40

B) First Quartile (Q1): 116.1 Third Quartile (Q3): 152.6 Interquartile Range (IQR): 44

C) First Quartile (Q1): 115 Third Quartile (Q3): 158.6 Interquartile Range (IQR): 30

D) First Quartile (Q1): 117.5 Third Quartile (Q3): 150.7 Interquartile Range (IQR): 30

The heights (in cm) of a group of students are as follows:

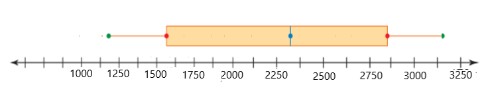

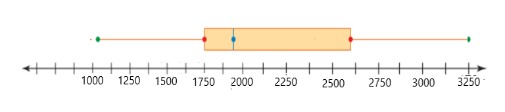

1160, 1262, 2365, 1568, 1270, 1472, 1775, 1278, 1480, 1220, 2185, 1087, 2590, 1392, 2695, 1498, 2200, 3203, 2205, 1008, 2410, 1312, 3215, 2618, and 3250. Construct a box and whisker plot for the given data set.

A) $8.1$

B) $8.2$

C) $8.3$

D) $8.4$

A researcher records the weights (in kg) of a sample of 20 cats. Weights: 22.5, 33.1, 43.2, 33.5, 53.6, 73.8, 24.0, 14.1, 54.2, 44.5, 84.7, 35.0, 65.2, 35.5, 125.8, 16.0, 66.2, 56.5, 137.0, and 150.0

Identify any outliers in the data set.

A) outliers = 14.1

B) outliers = 137.0

C) outliers = 150.0

D) outliers = 22.5

Data Set 2: 102, 105, 108, 110, 115, 120, 122, 125, 128, 130, 135, 140, 142, 145, 150, 155, 160, 162, 165, 170, and 200.

Calculate the first quartile (Q1), third quartile (Q3), and interquartile range (IQR) for the data set. Determine the lower and upper bounds for identifying outliers using the 1.5 \$\times\$ IQR rule.

A) Lower Bound: 617.5 Upper Bound: 2257.5

B) Lower Bound: 697.5 Upper Bound: 2157.7

C) Lower Bound: 637.1 Upper Bound: 2057.9

D) Lower Bound: 687.5 Upper Bound: 2277.3
